[T3] type3-vwtype3.org Digest, Vol 120, Issue 19

[S UNSWORTH]

I find the easiest way to make the Front to Rear Brake Pipe is in 2 halves with a Connector somewhere  inside the car next to the Central Tunnel. It is much easier to feed and bend the 2 separate sections of Pipe where they need to go at both ends of the car. Find the final lengths needed on the straight, where they need to meet in the middle, then cut them to length and make the Flares “  in situ “.
I do not know what Tools you have to do this “ in situ “ but I bought a Sykes Picavant Hydraulic Flaring Tool when I made all new Brake Lines for my 1972 Squareback, as part of the “ Body Off “ Resto. some years ago. This Sykes Picavant is a Hand Held Flaring Tool intended for that exact purpose of making Brake Pipe Flares on the Car, rather than on the Bench. It makes far better Flares than any basic mechanical Flaring Tool as well.
Regards,
Steve


Sent from Yahoo Mail for iPad


On Tuesday, September 29, 2020, 9:13 pm, type3-vwtype3.org-request at lists.vwtype3.org wrote:

Send type3-vwtype3.org mailing list submissions to
    type3-vwtype3.org at lists.vwtype3.org

To subscribe or unsubscribe via the World Wide Web, visit
    http://lists.vwtype3.org/listinfo.cgi/type3-vwtype3.org
or, via email, send a message with subject or body 'help' to
    type3-vwtype3.org-request at lists.vwtype3.org

You can reach the person managing the list at
    type3-vwtype3.org-owner at lists.vwtype3.org

When replying, please edit your Subject line so it is more specific
than "Re: Contents of type3-vwtype3.org digest..."


***********************************
When replying to the digest, please remember to trim your message. Thanks! :)
***********************************


_______________________________________________
VWType3.Org mailing list - type3 at vwtype3.org
To unsubscribe or change subscription options, visit:
http://lists.vwtype3.org/listinfo.cgi/type3-vwtype3.org
If you need more help, contact: gregm at vwtype3.org
_______________________________________________



Today's Topics:

  1. Re: New brake line help (Jim Adney)
  2. Re: New brake line help (Jim Adney)


----------------------------------------------------------------------

Message: 1
Date: Mon, 28 Sep 2020 17:01:06 -0500
From: "Jim Adney" <jadney at vwtype3.org>
To: type3 at vwtype3.org
Subject: Re: [T3] New brake line help
Message-ID: <5F725D22.2649.63121A4D at jadney.vwtype3.org>
Content-Type: text/plain; charset=US-ASCII

On 27 Sep 2020 at 18:22, Max Welton wrote:

> > He probably lost it because it was toast. Perhaps ISP got you one that's
> > right, but the ones commonly available for Beetles are a couple inches too
> > short for us. I make them myself, from the newish CuNi allow that won't rust,
> > and in the right length for Type 3s.
>
> Alex sent me one labelled 211 611 741 K.  Looks about the right length
> given the bends I'll need to hit the port on the MC. I'll try it.

That would be a Bus line, so it's likely to be a bit long. Best to tuck the extra
under the back seat.

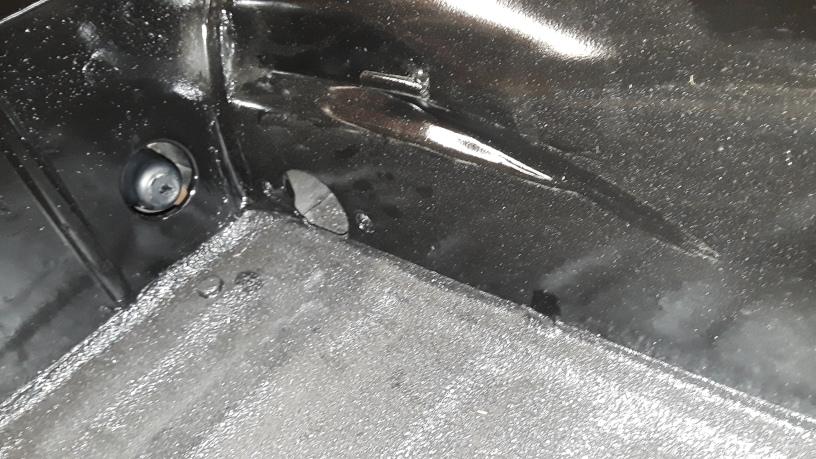

> The opening forward of the pedal cluster was covered / closed when the
> pan was done. What would that have looked like?
>
> https://www.thesamba.com/vw/gallery/pix/2093584.jpg

I'm not sure. I think the lower right corner of that vertical panel was simply
cut at an angle, leaving a triangular hole between it, the tunnel, and the
floor. It's not big, just large enough to clear the line nut.

Someone else may remember this better.

> > VW used different styles of grommets every few years. I have some of them,
> > but you'd have to tell me what you need. I can't tell for you. Depends on the
> > size of the hole you're going thru.
>

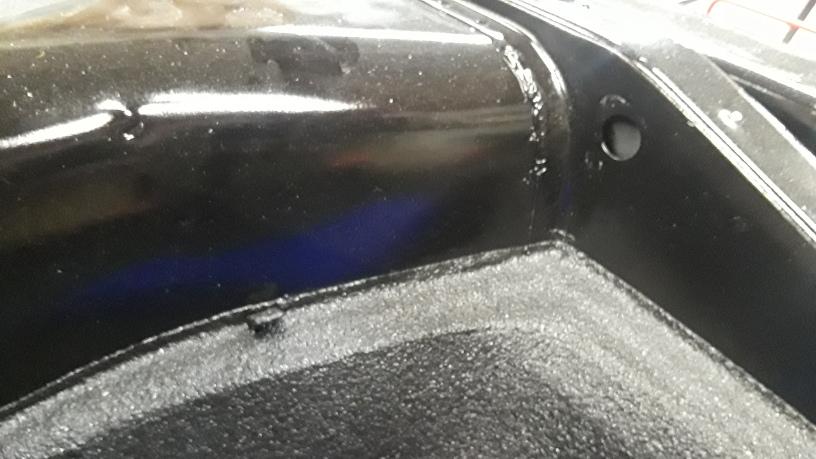

> The hole up front is about 15mm and in the rear I see a 20mm on the
> inside and another 15mm on the outside. Sound like something you have
> grommets for? That would be handy.
>
> https://www.thesamba.com/vw/gallery/pix/2093582.jpg

I'll check to see what I have. Some are new, some used. In that photo you
can see one of the tabs that are used to hold the line down against the floor.

Do you need the Tee that mounts to the rear end of that line?

--
*******************************
Jim Adney, jadney at vwtype3.org
Madison, Wisconsin, USA
*******************************



------------------------------

Message: 2
Date: Tue, 29 Sep 2020 10:09:14 -0500
From: "Jim Adney" <jadney at vwtype3.org>
To: type3 at vwtype3.org
Subject: Re: [T3] New brake line help
Message-ID: <5F734E1A.23534.66BF630D at jadney.vwtype3.org>
Content-Type: text/plain; charset=US-ASCII

On 28 Sep 2020 at 16:03, Max Welton wrote:

> I should be able to source new grommets locally that are new. They're just
> grommets.

You can certainly find something from the electronics world that will keep the
line from chafing, but the OE parts also seal around the tube, so they also
keep water out. Maybe use some standard electronic grommets plus some
caulk to seal around the tube.

To be fair, by the time you cut OE grommets to get them over the line nuts,
you'll want to seal them with something anyway.

--
*******************************
Jim Adney, jadney at vwtype3.org
Madison, Wisconsin, USA
*******************************



------------------------------
