[T3] Wipers

Max Welton max.welton.2k at gmail.com
Tue Sep 14 17:28:14 PDT 2021


>They won't fit, as is. I THINK the 68-9 shafts are 8 mm and the earlier shafts
>are 6 mm. I'm not sure about the exact number, but I am sure that the early
>shafts are smaller. Assuming there's enough meat in the early arms it might
>be possible to drill and ream the early arms out to fit the later shafts. I could
>do that work if you could provide a careful measurement of your later shafts.

>Jim

My 67's are 8mm.

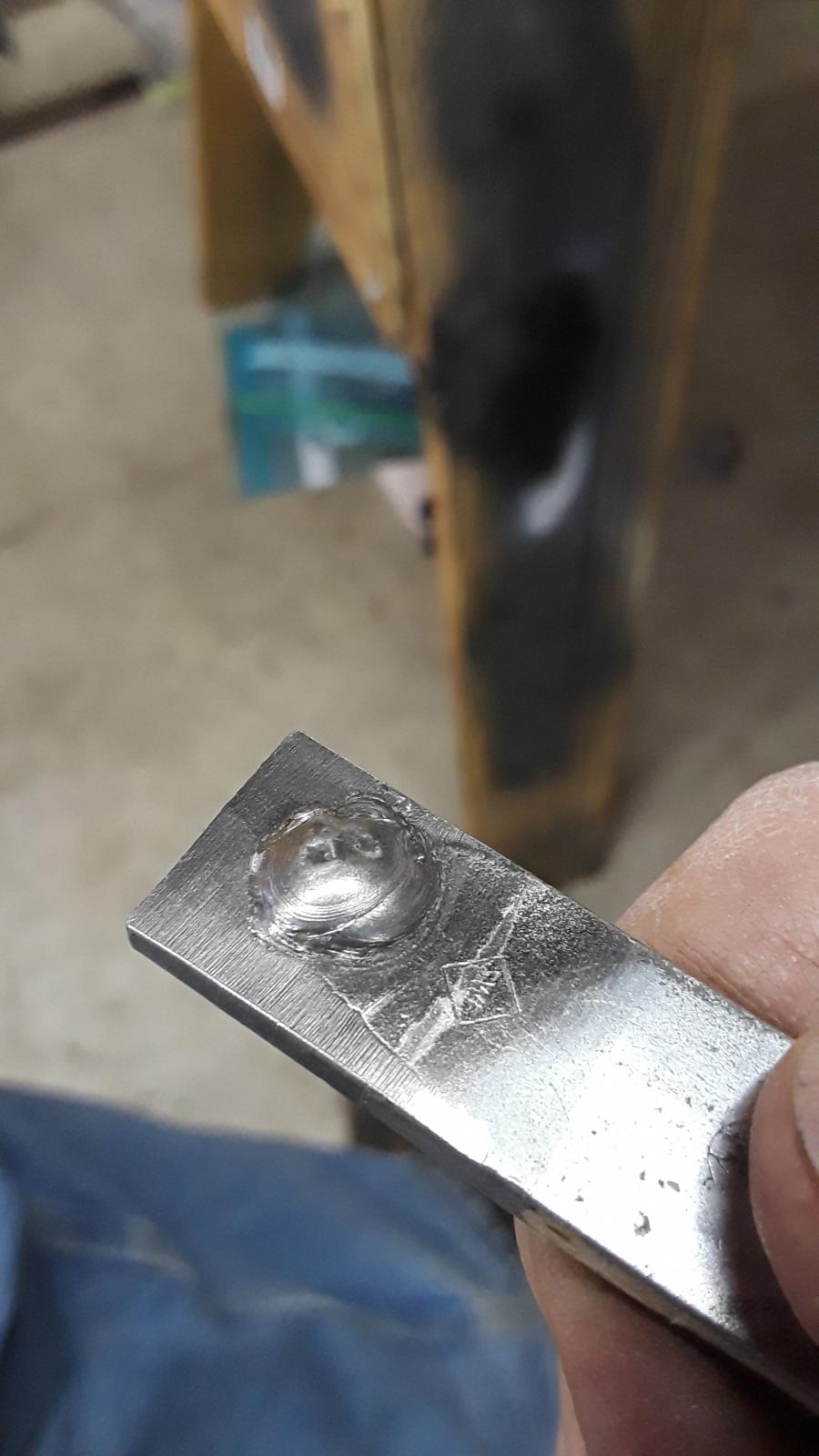

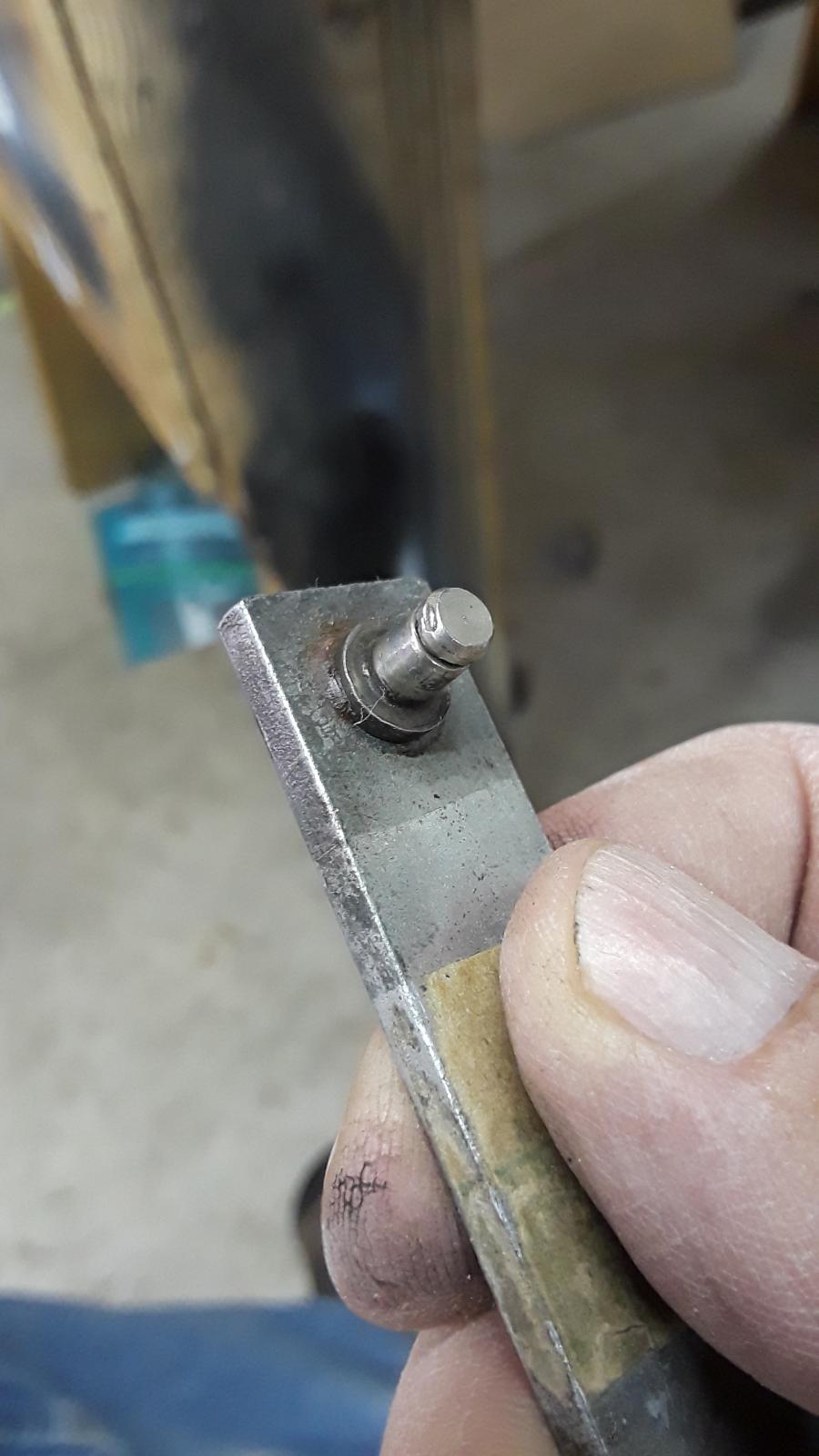

I got some later splined shafts but they had the wrong pivot posts. I
was able to grind them out and weld in the ones from my 67. Works a
treat.

https://www.thesamba.com/vw/gallery/pix/2173684.jpg

https://www.thesamba.com/vw/gallery/pix/2173683.jpg

Max
