[T3] 65 turn signal switch

[William Hoyer]

When the arm is at either turn signal position the only thing that
protrudes into the location that the piece hits it is a small plastic
piece. However hitting this to make the arm return to the non signal
location does nothing other than move this plastic piece. I don't think
the setup is from a 65 Since it doesn't  look like what is shown in the
large service manual. The manufacture is K in a circle.



On Tue, Aug 8, 2023, 6:09 AM Jim Adney <jadney at vwtype3.org> wrote:

> On 7 Aug 2023 at 18:41, Soren Jacobsen wrote:
>

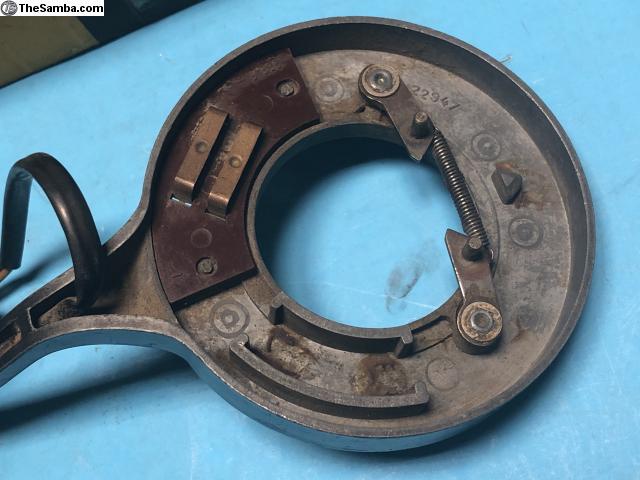

> > Surprisingly, I found an image of that very issue in a switch that's for
> sale:
>
> > https://www.thesamba.com/vw/classifieds/pix/8639789.jpg
>
> > Notice that channel at 6-7 o'clock?  There should be a spring and two
> discs
> > in there.
>
> Wow, that's COMPLETELY different from the later ones that I'm familiar
> with,
> but it looks like it might be simpler to find and fix the problem. Thanks
> for the
> link; I had no idea that the early ones were so completely different.
>
> --
> *******************************
> Jim Adney, jadney at vwtype3.org
> Madison, Wisconsin, USA
> *******************************
>
