[T3] Rear Fastback Lid alignment
Max Welton
max.welton.2k at gmail.com
Sat Apr 9 19:44:46 PDT 2022

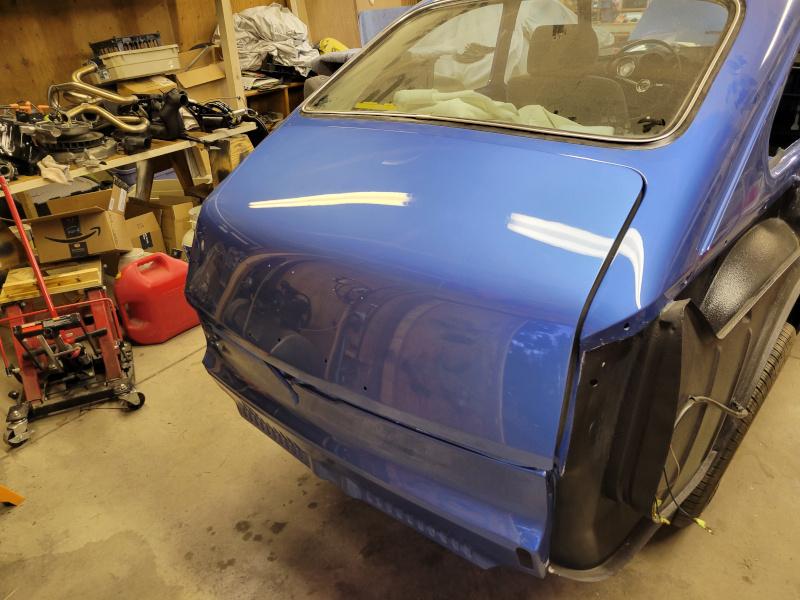

Had some extra hands today and got the rear lid bolted up.

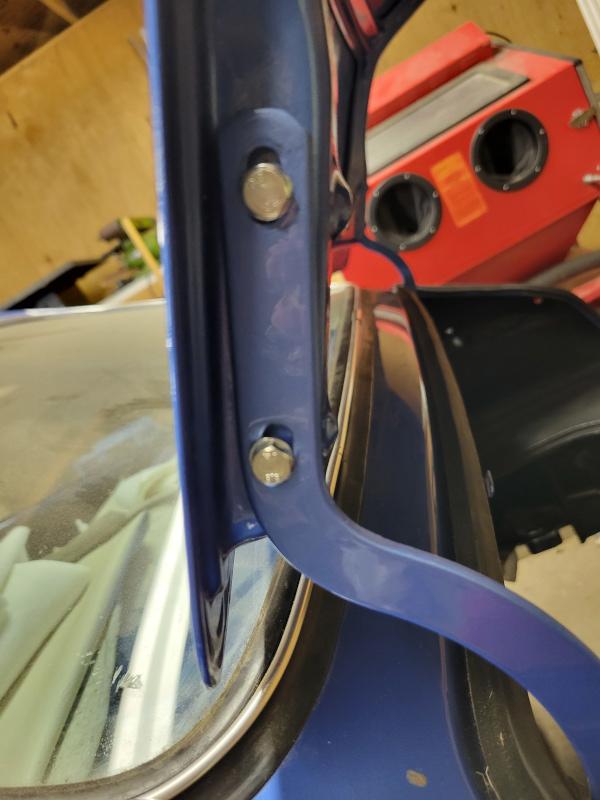

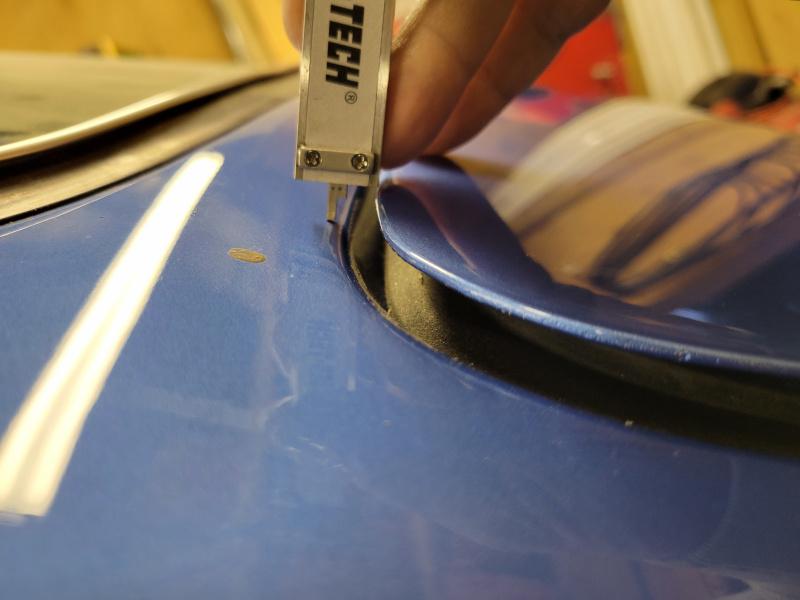

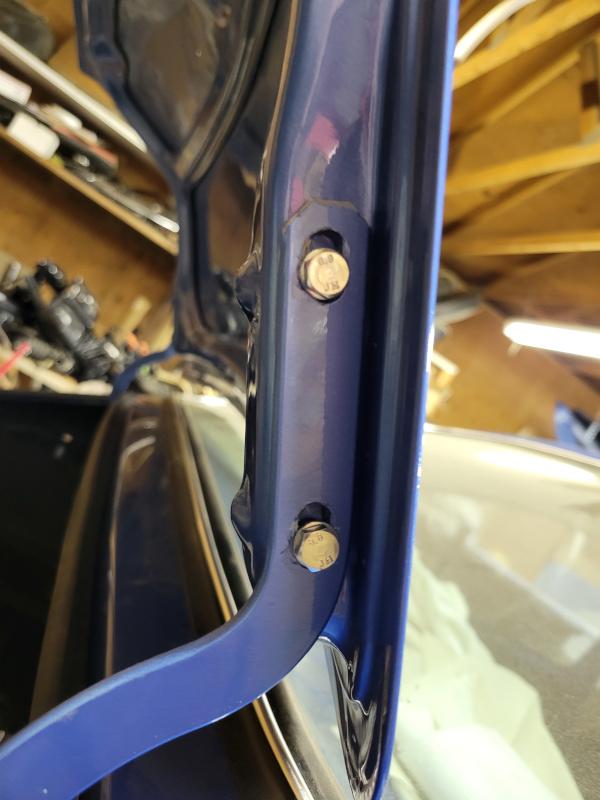

The lid stands about 7.26 mm above the surrounding body. But the slots in
the hinges run fore and aft, not up and down. I don't think there's 7.26mm
vertical available without altering the hinge.
Now the entire rear of the car has been reconstructed using sections from
several donor cars so it's entirely possible some things are off
dimensionally.
Any thoughts?
https://www.thesamba.com/vw/gallery/pix/2278939.jpg
https://www.thesamba.com/vw/gallery/pix/2278938.jpg
https://www.thesamba.com/vw/gallery/pix/2278936.jpg
https://www.thesamba.com/vw/gallery/pix/2278935.jpg
Max
